DIN 1142 Rope Clamp: Reliability and Functionality
The DIN 1142 screw clamp is a high-strength device designed for the reliable fixing and splicing of steel ropes. Its construction includes two threaded guides and a saddle, ensuring secure and even clamping of the rope.

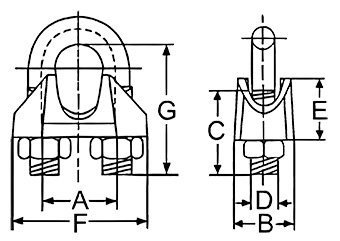

DIN 1142 Clamp Dimensions
| Designation | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight per piece (kg) |
|---|---|---|---|---|---|---|---|---|
| 6 mm | 14 | 16 | 17 | M6 | 14 | 30 | 32 | 0.04 |
| 8 mm | 18 | 20 | 20 | M8 | 18 | 39 | 41 | 0.082 |
| 10 mm | 20 | 20 | 24 | M8 | 21 | 40 | 46 | 0.092 |
| 13 mm | 27 | 28 | 31 | M12 | 30 | 59 | 64 | 0.27 |
| 16 mm | 32 | 32 | 35 | M14 | 35 | 64 | 76 | 0.43 |
| 19 mm | 36 | 32 | 36 | M14 | 40 | 68 | 83 | 0.49 |
| 22 mm | 40 | 34 | 40 | M16 | 44 | 74 | 96 | 0.68 |
| 26 mm | 46 | 38 | 50 | M20 | 51 | 84 | 111 | 1.17 |
| 30 mm | 54 | 41 | 55 | M20 | 59 | 95 | 127 | 1.40 |
| 34 mm | 60 | 45 | 60 | M22 | 67 | 105 | 141 | 2.13 |
| 40 mm | 68 | 49 | 65 | M24 | 77 | 117 | 159 | 2.68 |
DIN 1142 Rope Clamp for Complex Tasks
This type of clamp is widely used in installation and rigging operations. It is utilized for connecting ropes, creating loops, and securing structures under high loads. Its easy installation makes it a versatile choice for any conditions:
- Loosen the nuts and remove the saddle.
- Place the ropes in the designated positions.
- Reattach the saddle and tighten the nuts evenly for a secure connection.
Key Advantages of DIN 1142 Clamps
- Enhanced Strength: Compared to DIN 741 clamps, DIN 1142 models offer superior durability due to an improved steel alloy and optimized design.
- Long-Lasting: Galvanization ensures resistance to corrosion and maintains functionality even in humid or harsh environments.
- Wide Range of Sizes: Diameters from 6 mm to 40 mm allow for versatile applications.
Each product is accompanied by a certificate and comes with a 6-month warranty.
Technical Specifications and Installation
Manufactured according to DIN 1142 standards from high-carbon steel, the clamps are galvanized for extended service life.
- The spacing between installed clamps must be no less than 1.5B and no more than 3B (where B is the saddle width).
- When using a thimble, the first clamp should be positioned directly opposite the thimble.
Table of Torque and Clamp Quantity Requirements:
| Clamp Diameter (mm) | Torque (Nm) | Number of Clamps (pcs) |
|---|---|---|
| 6 | 3.5 | 3 |
| 8 | 6 | 4 |
| 10 | 9 | 4 |
| 13 | 33 | 4 |
| 16 | 49 | 4 |
| 19 | 68 | 4 |
| 22 | 107 | 5 |
| 26 | 147 | 5 |
| 30 | 212 | 6 |
| 34 | 296 | 6 |
| 40 | 363 | 6 |
